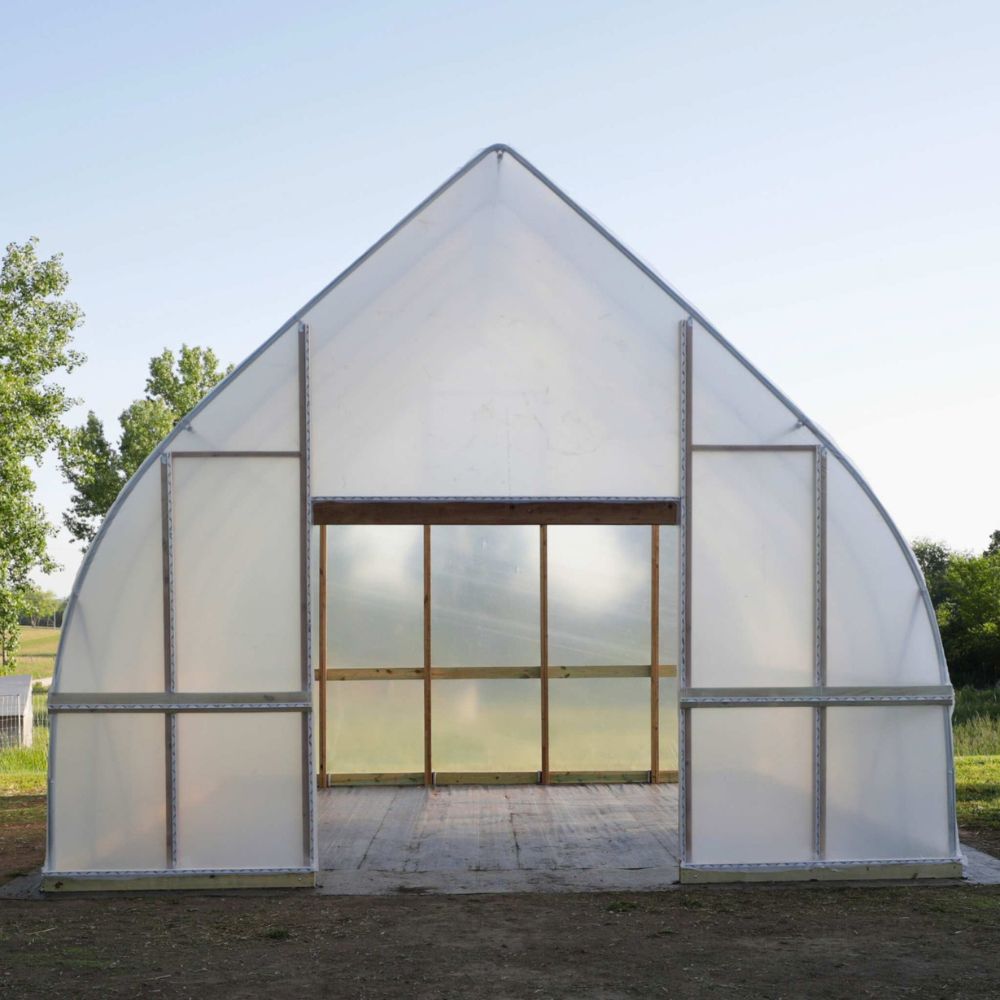

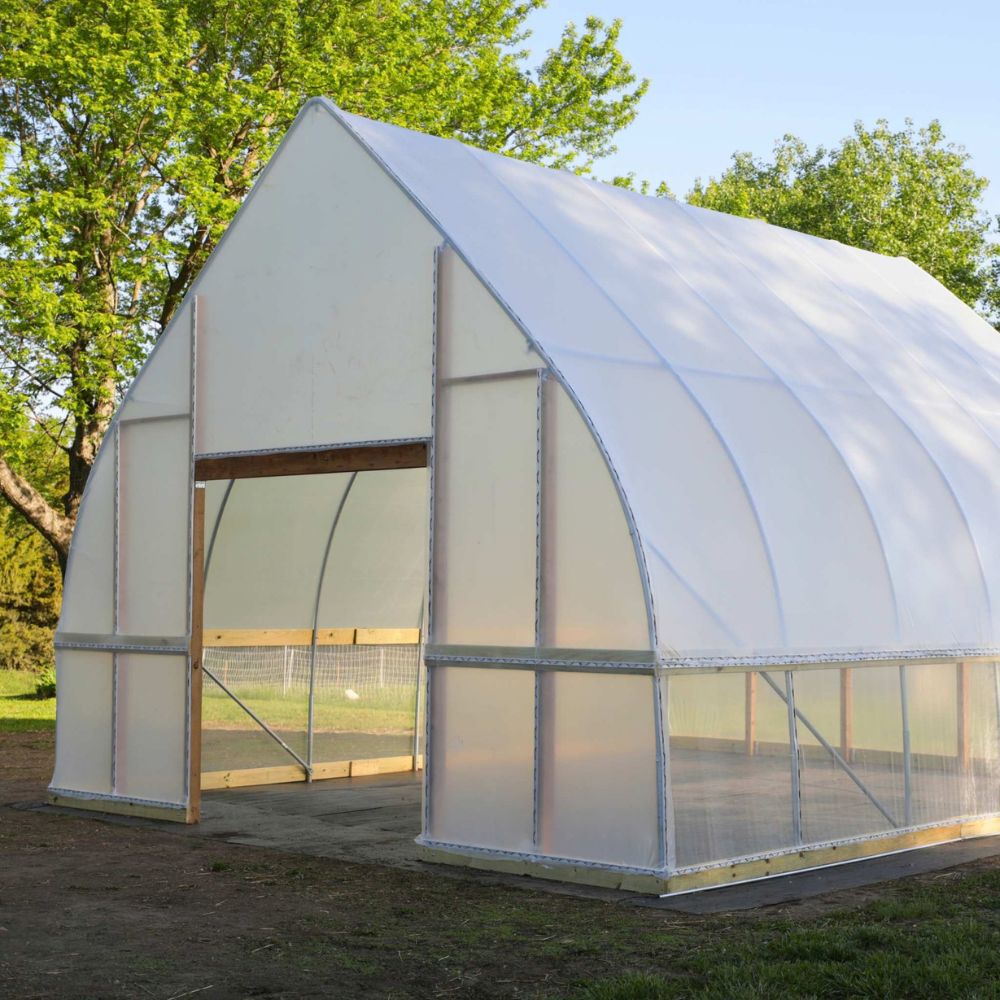

Build a Taller Greenhouse With a Snow-Shedding Gothic Design
The DIY Gothic Greenhouse Kit is designed for growers who want the snow-shedding benefits, taller sidewalls, and extra interior headroom of a Gothic arch greenhouse. The steep roofline provides additional clearance for trellising, airflow, and tall crops while helping snow and water shed from the greenhouse covering.
Available in 14′ or 20′ widths and lengths from 20′ to 100′, this DIY high tunnel gives you plenty of flexibility to choose a growing space that fits your property. The 14′-wide greenhouse stands approximately 12.5′–13.5′ tall, while the 20′-wide greenhouse reaches approximately 15.5′–16.5′ tall.
To keep the kit affordable to ship, the bulky metal tubing and lumber are purchased locally. Your greenhouse kit includes the specialty greenhouse components, covering, hardware, connectors, and preformed Gothic peaks needed to complete the structure with your locally sourced materials.
This greenhouse kit is not eligible for returns.
Why Choose the DIY Gothic Greenhouse?
-
Gothic arch design — Sheds snow better than traditional round hoop designs.
-
Steeper roof pitch — Helps improve water runoff from the greenhouse covering.
-
Extra interior headroom — Taller sidewalls provide additional clearance for trellising, tall crops, and airflow.
-
Ideal for snow-prone climates — The Gothic profile is designed with improved snow shedding in mind.
-
Multiple sizes available — Choose from 14′ or 20′ widths and 20′, 40′, 60′, 80′, or 100′ lengths.
-
4-year greenhouse plastic included — 6 mil greenhouse plastic is sized to cover the entire greenhouse, including the end walls.
-
Specialty hardware included — The kit includes the connectors, fasteners, lock channel, spring wire, and other specialty components needed for the structure.
-
Ground post driver included — Helps safely drive your locally sourced ground posts into the ground.
-
DIY instructions included — Detailed assembly instructions and a Buy Local Chart help you prepare for the build.
-
Free shipping — Ready to ship in approximately 2–3 business days.
What's Included With Your Greenhouse Kit
Your DIY Gothic Greenhouse Kit includes:
-
DIY Gothic preformed peaks
-
Spring lock wire
-
Lock channel for securing the greenhouse plastic
-
Ground post driver
-
1 3/8″ × 1 3/8″ cross connectors for attaching arches to ridge poles and purlins
-
6 mil, 4-year greenhouse plastic sized to cover the entire greenhouse, including the end walls
-
Required screws, nuts, bolts, and connectors for the pole and frame components
-
Detailed DIY greenhouse assembly instructions
-
Printable Buy Local Chart
The included lock channel assumes a single-door configuration. Additional lock channel may be needed if you plan to build double doors or add windows.
Lumber and metal tubing are not included and must be purchased locally.
Locally Sourced Metal & Lumber
The DIY Gothic Greenhouse is designed so the bulky metal tubing and lumber can be purchased near you rather than shipped with the kit. This helps reduce the cost of getting a large greenhouse structure to your property.
The exact materials required depend on the width and length you select.
14′ Wide Gothic Greenhouse — Locally Sourced Materials
| Material | 20′ Long | 40′ Long | 60′ Long | 80′ Long | 100′ Long |
|---|---|---|---|---|---|
| 10′ 1-3/8″ Top Rail for Bows & Ridge Poles | 24 | 45 | 66 | 87 | 108 |
| 8′ 1-5/8″ Line Posts for Ground Posts | 6 | 11 | 16 | 21 | 26 |
| 1″ × 6″ × 8′ Wood for Base/Hip Boards | 12 | 24 | 36 | 44 | 56 |
| 2″ × 4″ × 8′ Studs for Door | 16 | 16 | 16 | 16 | 16 |
| 2″ × 4″ × 10′ Studs for Door | 2 | 2 | 2 | 2 | 2 |
| 1″ × 4″ × 8′ Boards for Door Frame | 2 | 2 | 2 | 2 | 2 |
| 2″ × 6″ × 8′ Boards for End Walls | 4 | 4 | 4 | 4 | 4 |
20′ Wide Gothic Greenhouse — Locally Sourced Materials
| Material | 20′ Long | 40′ Long | 60′ Long | 80′ Long | 100′ Long |
|---|---|---|---|---|---|
| 10′ 1-3/8″ Top Rail for Bows & Ridge Poles | 30 | 56 | 82 | 108 | 134 |
| 8′ 1-5/8″ Line Posts for Ground Posts | 6 | 11 | 16 | 21 | 26 |
| 1″ × 6″ × 8′ Wood for Base/Hip Boards | 12 | 24 | 36 | 44 | 56 |
| 2″ × 4″ × 8′ Studs for Door | 16 | 16 | 16 | 16 | 16 |
| 2″ × 4″ × 10′ Studs for Door | 4 | 4 | 4 | 4 | 4 |
| 1″ × 4″ × 8′ Boards for Door Frame | 2 | 2 | 2 | 2 | 2 |
| 2″ × 6″ × 12′ Boards for End Walls | 4 | 4 | 4 | 4 | 4 |
Lumber availability varies by location. Redwood, cedar, or pressure-treated lumber are recommended for parts of the structure that will be exposed to moisture.
Choose the Growing Space You Need
Choose from two widths and five lengths to find the growing area that works for your property and plans.
| Greenhouse Size | Approximate Growing Area |
|---|---|
| 14′ × 20′ | 280 sq. ft. |
| 14′ × 40′ | 560 sq. ft. |
| 14′ × 60′ | 840 sq. ft. |
| 14′ × 80′ | 1,120 sq. ft. |
| 14′ × 100′ | 1,400 sq. ft. |
| 20′ × 20′ | 400 sq. ft. |
| 20′ × 40′ | 800 sq. ft. |
| 20′ × 60′ | 1,200 sq. ft. |
| 20′ × 80′ | 1,600 sq. ft. |
| 20′ × 100′ | 2,000 sq. ft. |

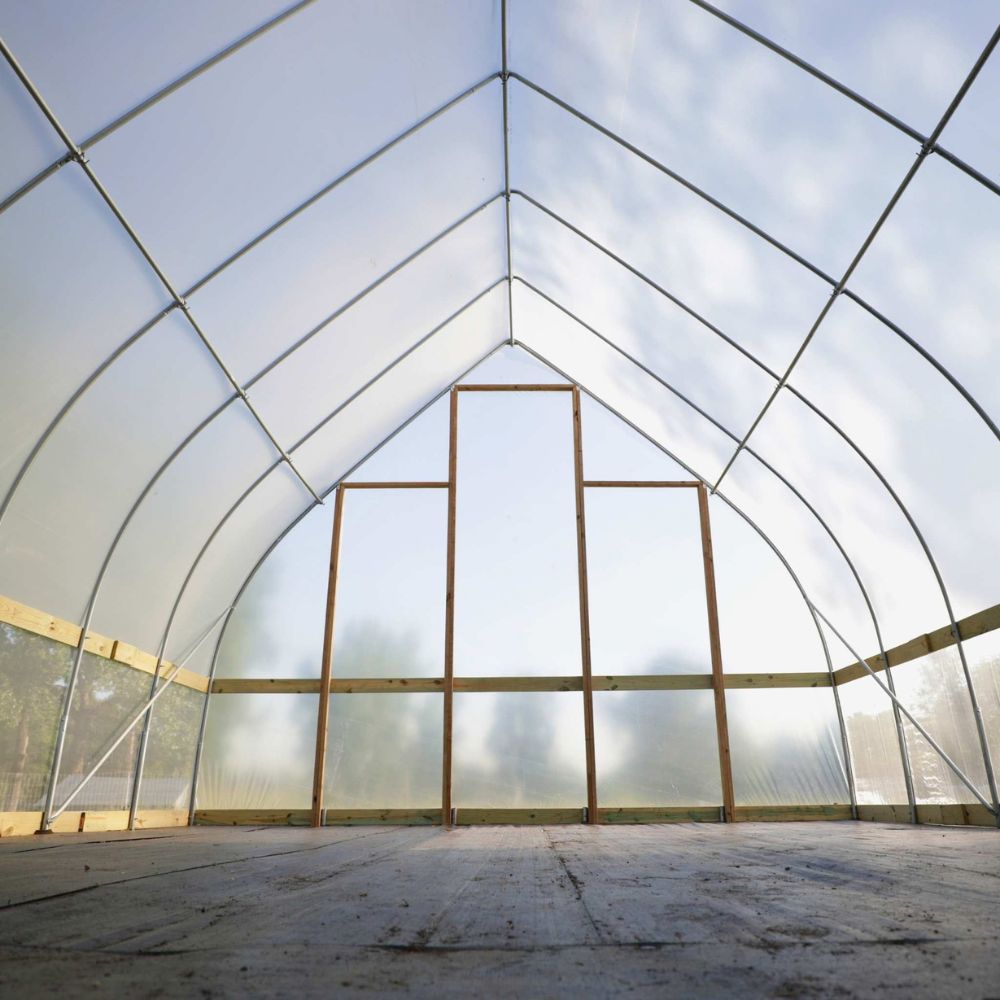

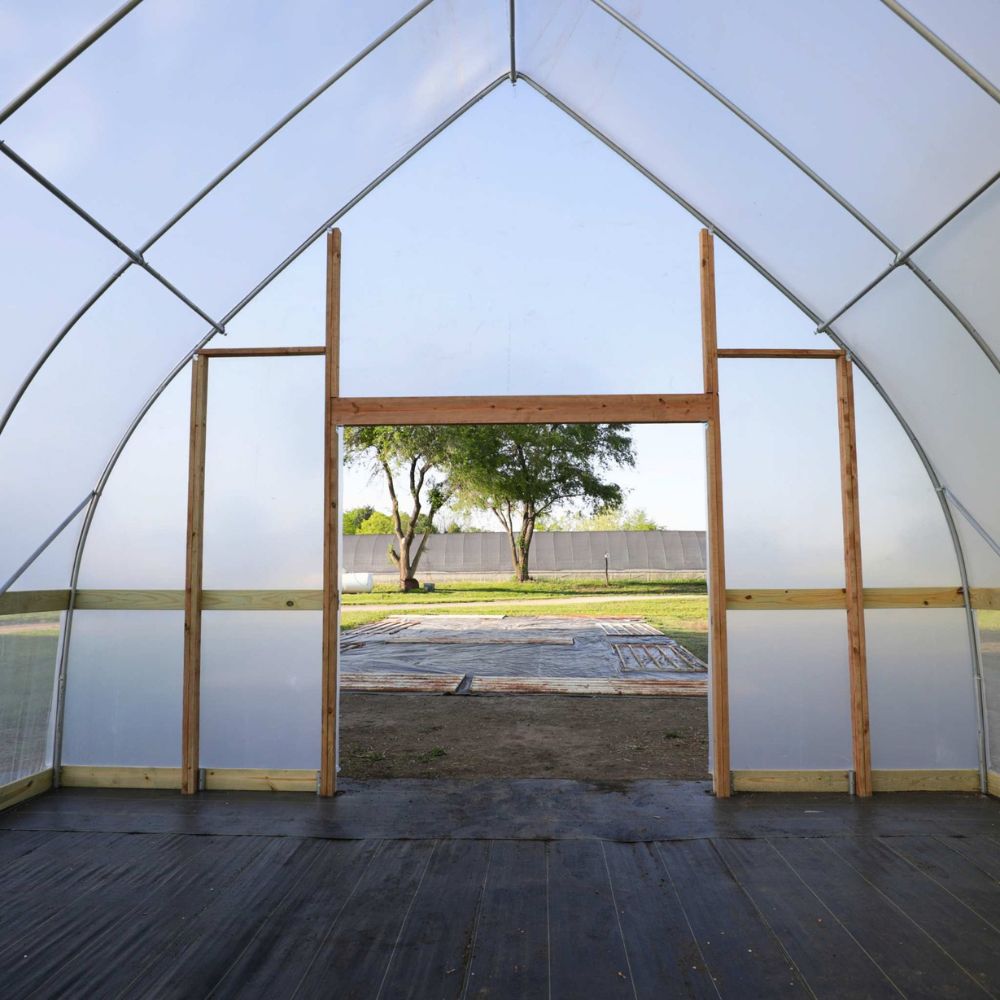

More Headroom for Tall Crops & Trellising
The Gothic profile provides substantially more vertical space than a traditional rounded hoop design.
The 14′-wide greenhouse reaches approximately 12.5′–13.5′ tall, while the 20′-wide greenhouse reaches approximately 15.5′–16.5′ tall. That extra clearance gives you more room for trellising tall crops while providing additional interior headroom and airflow.

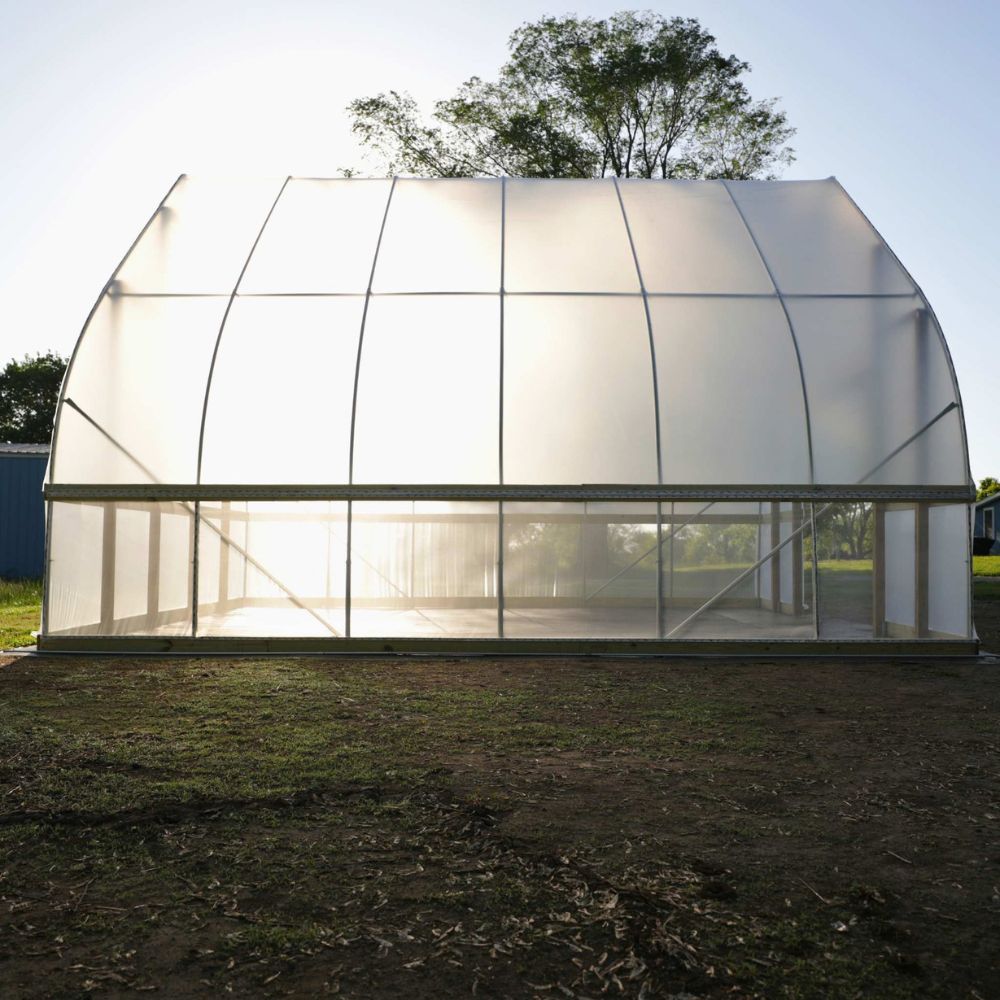

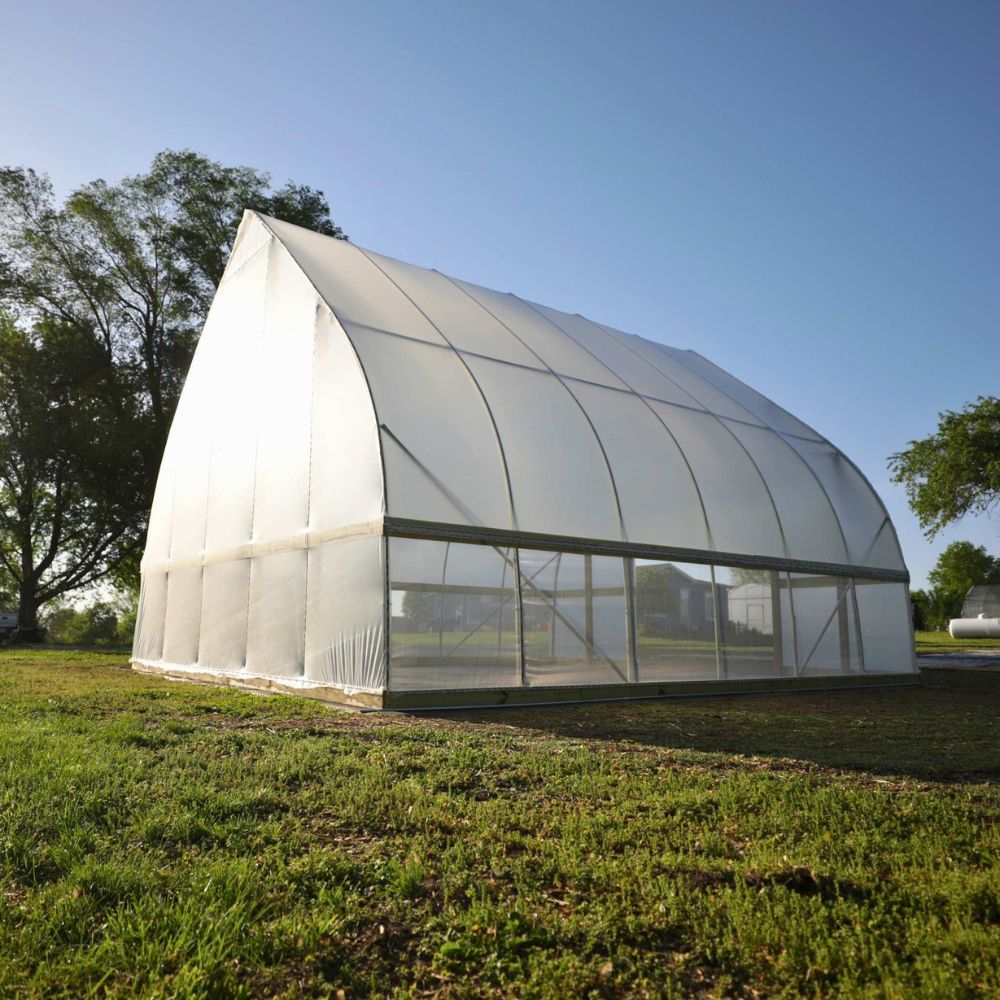

Designed to Shed Snow & Water
The steep Gothic arch is more than a distinctive shape. Its pitch is designed to shed snow better than a round hoop greenhouse while also improving water runoff from the greenhouse covering.
That makes the Gothic design particularly well suited to growers in snow-prone climates who also want the growing advantages of a tall high tunnel.
Customize Your Ventilation & Access
The included lock channel is based on a single-door greenhouse configuration. Additional lock channel may be needed if you choose to build double doors or add windows.
Preparing for Your Build
Because this greenhouse combines the supplied kit components with metal and lumber purchased locally, review the materials list for your selected width and length before beginning your project.
Make sure your locally sourced materials are available and ready before starting assembly. Lumber availability can vary by location, particularly when choosing moisture-resistant options such as redwood, cedar, or pressure-treated lumber.
Review the complete assembly instructions and Buy Local Chart before beginning construction so you know what you'll need for your specific greenhouse size.

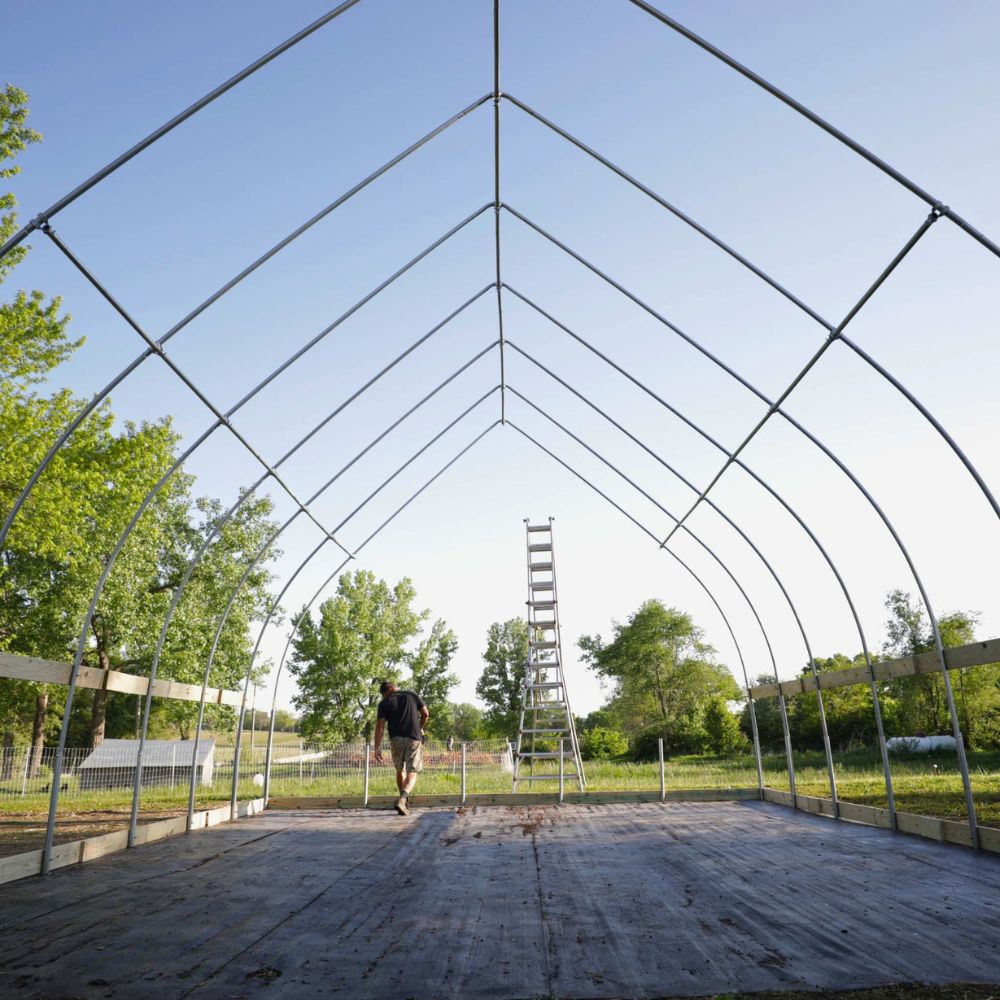

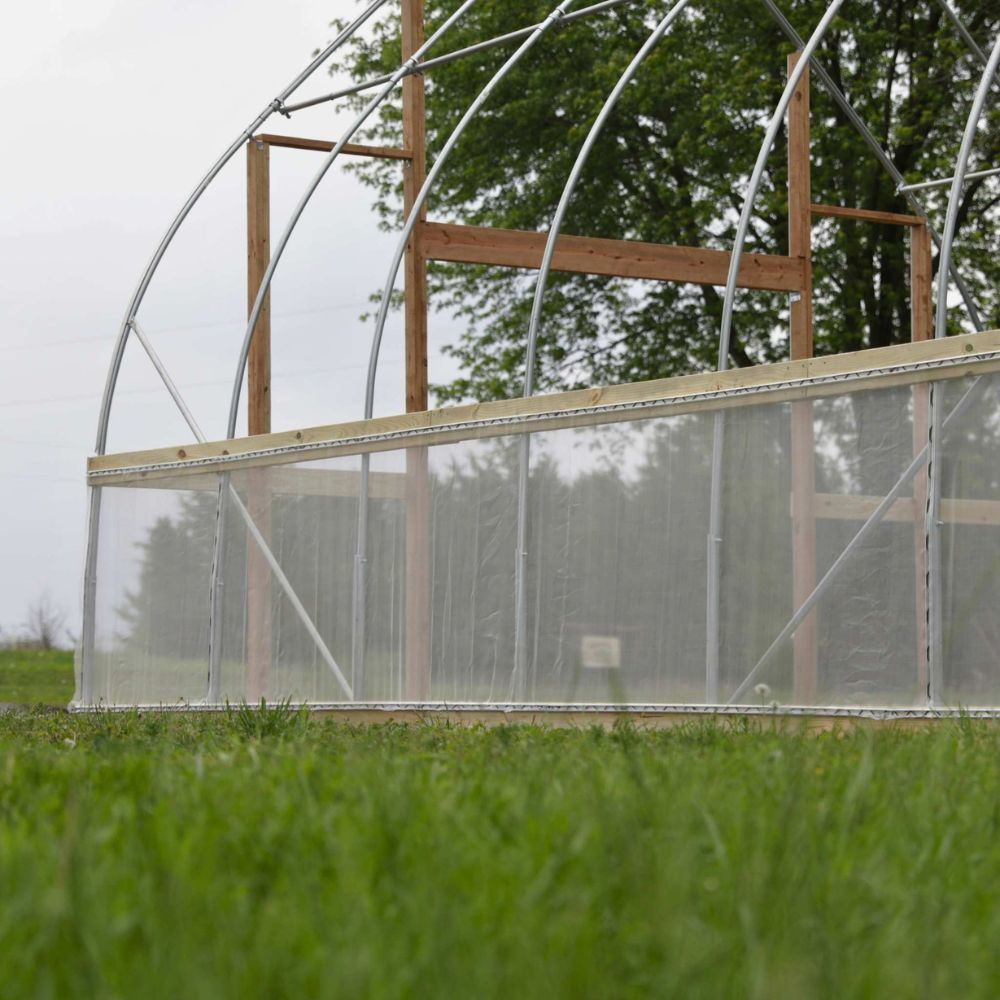

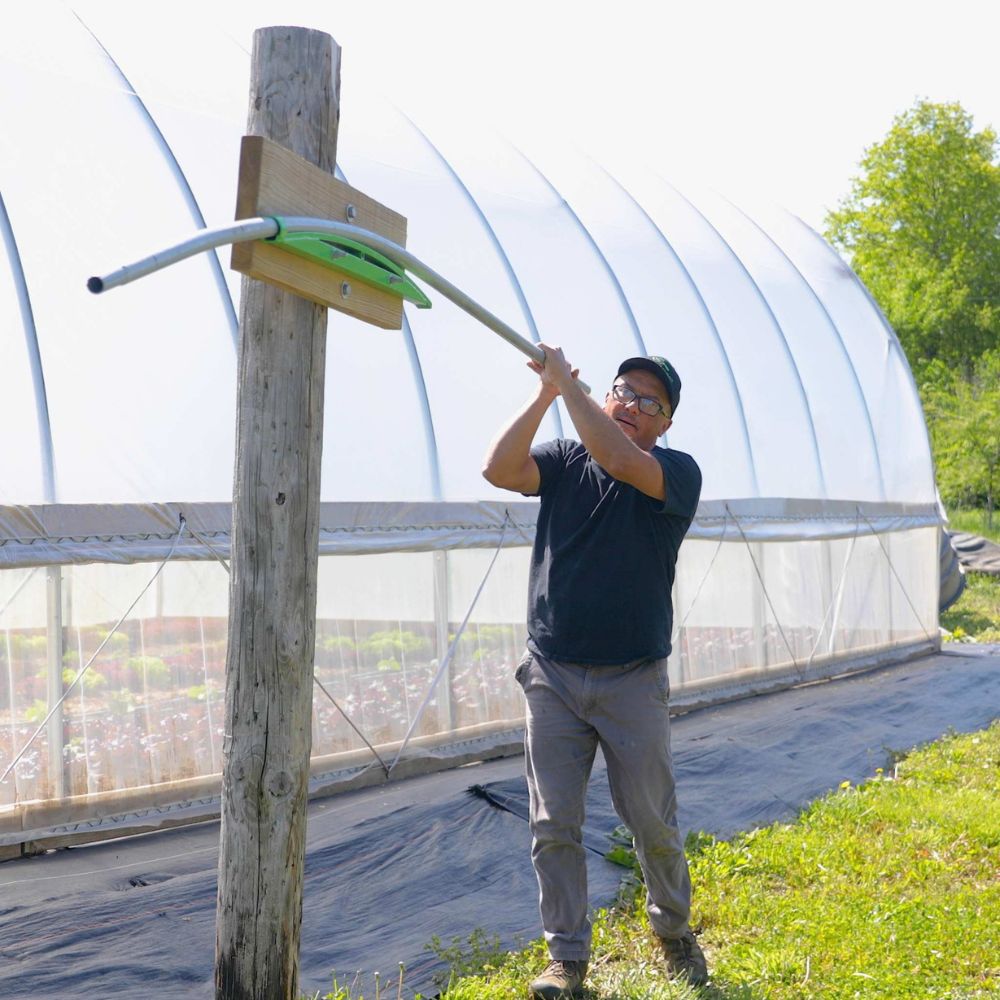

Assembling Your DIY Gothic Greenhouse
This greenhouse is designed for DIY assembly on site using the components supplied with the kit along with your locally purchased metal tubing and lumber.
Detailed assembly instructions are included to guide you through the build. A DIY Gothic Greenhouse Quick Start video is also available for a visual overview of the construction process.
▶ Watch the DIY Gothic Greenhouse Quick Start Video on YouTube
Because this greenhouse is offered in sizes ranging from 14′ × 20′ all the way to 20′ × 100′, the scope of the project will vary significantly depending on the size you select. Review the instructions and materials requirements for your configuration before beginning your build.
Important Shipping Information
The DIY Gothic Greenhouse Kit includes free shipping within the contiguous United States and is generally ready to ship within 2–3 business days.
The metal tubing and lumber listed above are purchased locally and will not arrive with your greenhouse kit.
The included 6 mil greenhouse plastic is sized to cover the entire greenhouse, including the end walls. In some cases, the greenhouse plastic may take an additional week to arrive if freight shipment is required.
This greenhouse kit is not eligible for returns. Please review your selected size, included components, locally sourced material requirements, and planned configuration carefully before ordering.
Questions about the DIY Gothic Greenhouse Kit? Contact Four Leaf Coop Co. at support@fourleafcoop.com or 518-288-5842. We're happy to help you review the available sizes and product information before you order.
